SYSTEMKAN-therm

PP Green
Assembly

Range of diameters 20-200 mm

Application

Home
/
pp-green
/
assembly

Connecting the system elements is performed by means of socket welding (thermal polyfusion) by means of electric welders. This welding method creates uniform connections and guarantees exceptional tightness and mechanic durability of the installation.

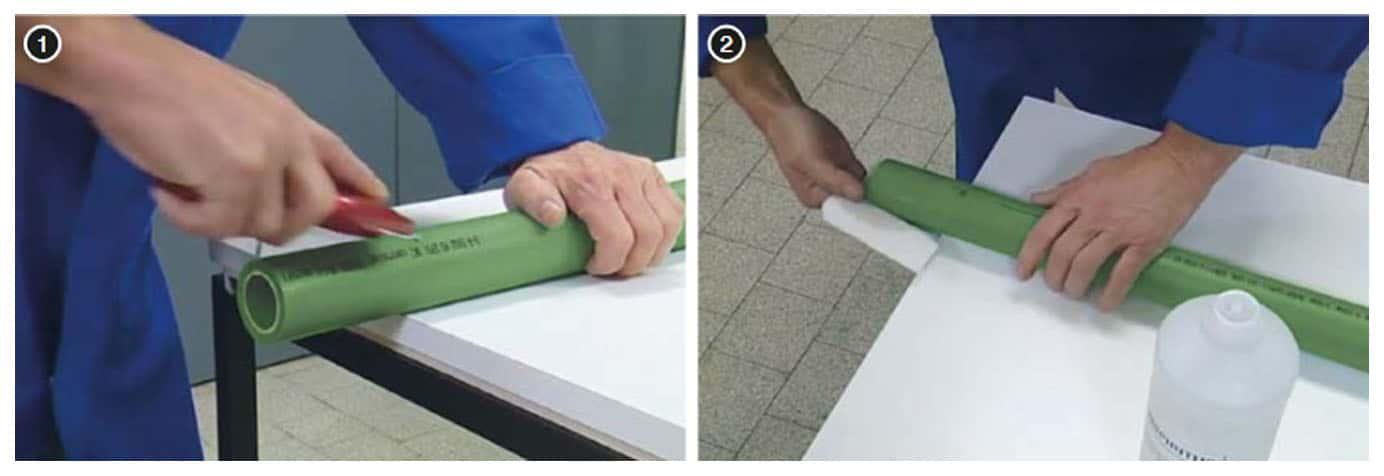

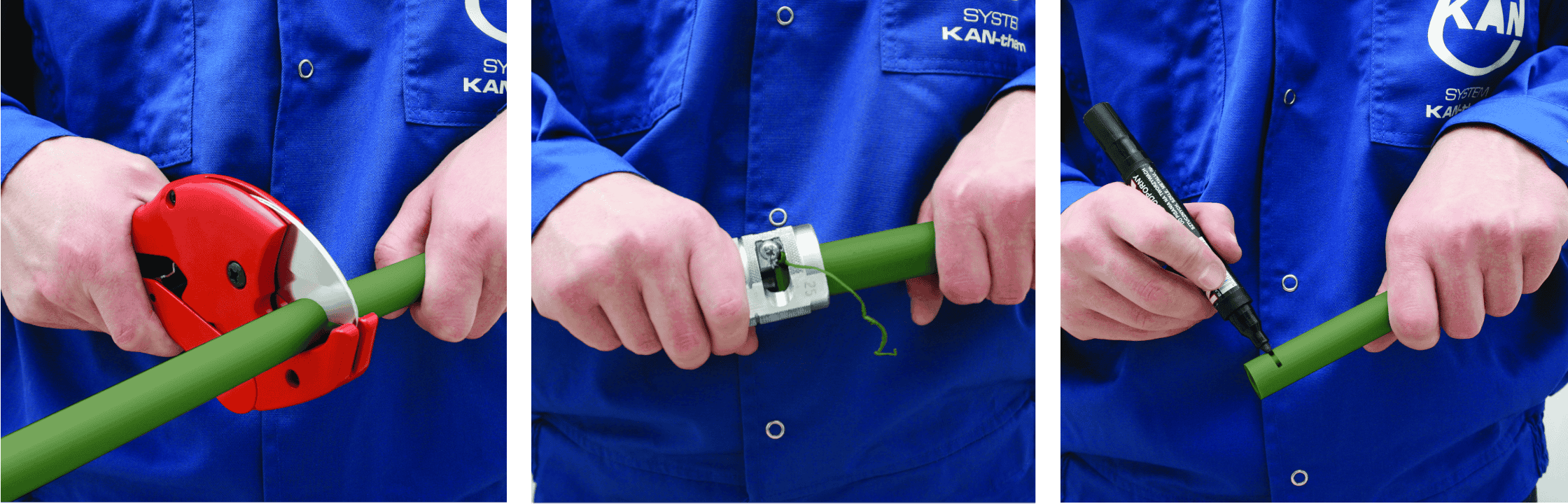

The selected pipe should be cut perpendicularly to the axis to the required length by means of plastic pipe cutters. It is not allowed to use other tools or cutters which are faulty (blunt or chipped).

Stripping the external part of the pipe to the size of the opening of the fitting, for example
Cleaning the surface of stripped pipes with alcohol

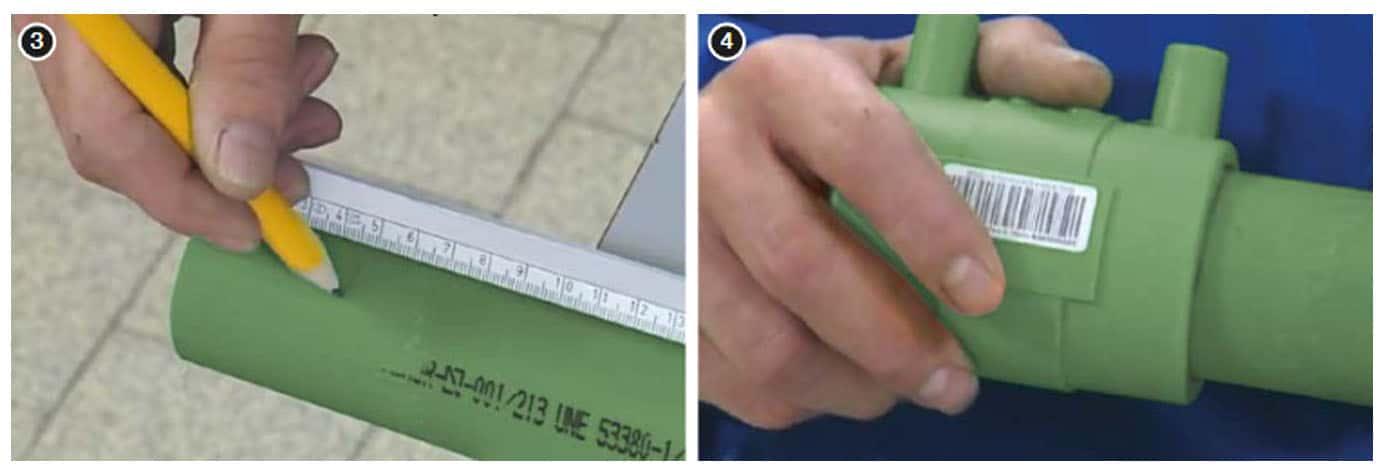

3. Marking the insertion depth

4. Insert the pipe into the connector

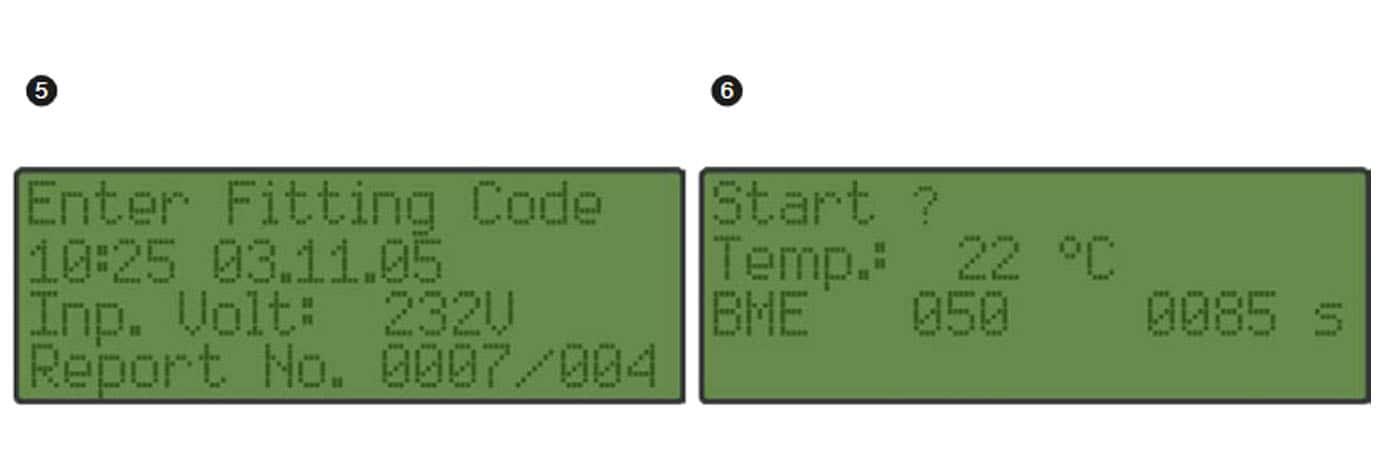

5. Programming the welding machine with the laser scanner (the welding machine adjusts parameters automatically)

6. Starting the welding process – the pipe must not be rotated, bent or pulled during the process.
