SYSTEMKAN-therm

TBS

KAN‑therm TBS is a complete installation system, designed for the construction of underfloor and wall heating and cooling installations using the dry method. The main pipe anchoring element in System KAN‑therm TBS is a specially profiled foamed polystyrene board with metal lamellas.

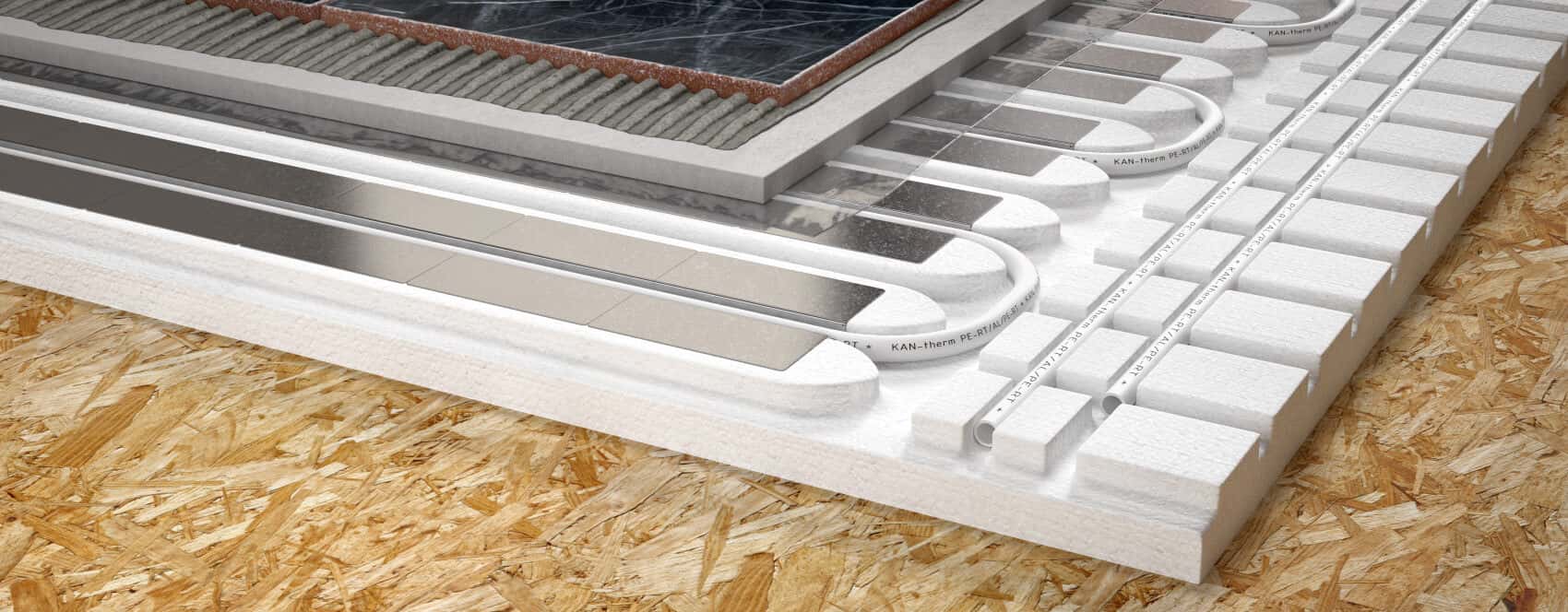

The water underfloor heating based on system KAN‑therm TBS boards belongs to floor heating structures made in the dry system. The heating pipes are placed in specially profiled grooved insulation panels, and then covered with dry screed plates, with thickness depending on the designed utility load of the floor. Heat from the heating pipes is evenly distributed to the dry screed plates through the radiating steel lamellas placed in the board grooves

The technical details of System KAN‑therm TBS and the principles for its selection and installation are described in KAN‑therm Guidebook Surface Heating and Cooling.

For wooden buildings and light constructions.

System KAN-therm TBS is designed for wooden construction where the structure cannot be subjected to a high load of traditional concrete screed.

Low mounting height.

The construction made in System KAN-therm TBS is characterised by low height. Therefore, the system is often used for renovations or in heating and cooling wall installations made with the dry method.

Advantages of System KAN-therm TBS:

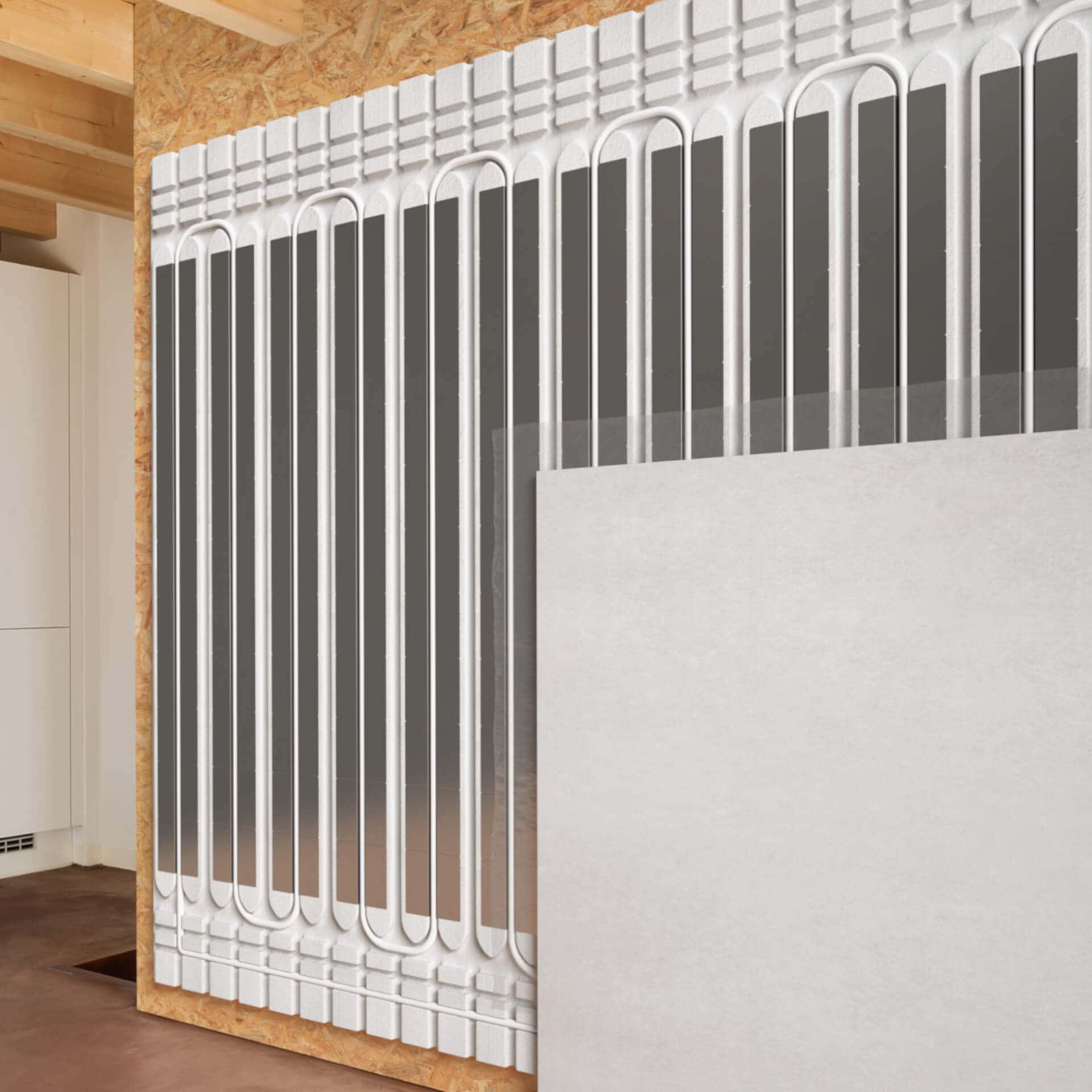

Universal application: underfloor and wall installations in the dry construction
Comprehensive and wide product offer
High quality of elements
Easy and quick assembly
Tool for making grooves in foamed polystyrene boards

Quick assembly.

The system installation is very easy and quick and can be done by one person.

Ready to work immediately after laying.

The installation in System KAN-therm TBS can be started immediately after laying it. There is no need for time-consuming maintenance of the screed. Once the installation is laid, the final floor covering can be made.

For sport floors.

Thanks to their pipe fastening method, TBS boards are ideal for sport floor heating installations with an air gap.
