tacker
/
design

The structure of the floor heater in System KAN-therm Tacker consists of several basic elements:

Thermal insulation
Clips for mounting pipes
Mechanical tool to drive clips – Tacker

KAN-therm Tacker thermal insulation

Several types of thermal insulation are available in the offer, depending on the needs of the investment and customer preferences.

Depending on the purpose of the room (floor load), foamed polystyrene boards can be used:

EPS 100 for standard floors used in housing and offices
EPS 200 for floors with increased load such as conference and lecture halls
EPS T-30 dB for floors in rooms with strict requirements concerning sound-proofing, e.g. TV and recording studios

The above include foamed polystyrene boards of different thickness and various foil coatings (metallised and laminated). Each board has a pre-applied, permanently glued foil, printed in the form of a grid with a 5cm pitch – this makes the installation of heating loops with a specific spacing and designed shape easier.

Foamed polystyrene boards are delivered in coils of 1x5m.

The selection of a specific thermal insulation is made at the stage of designing the underfloor heating and cooling system.

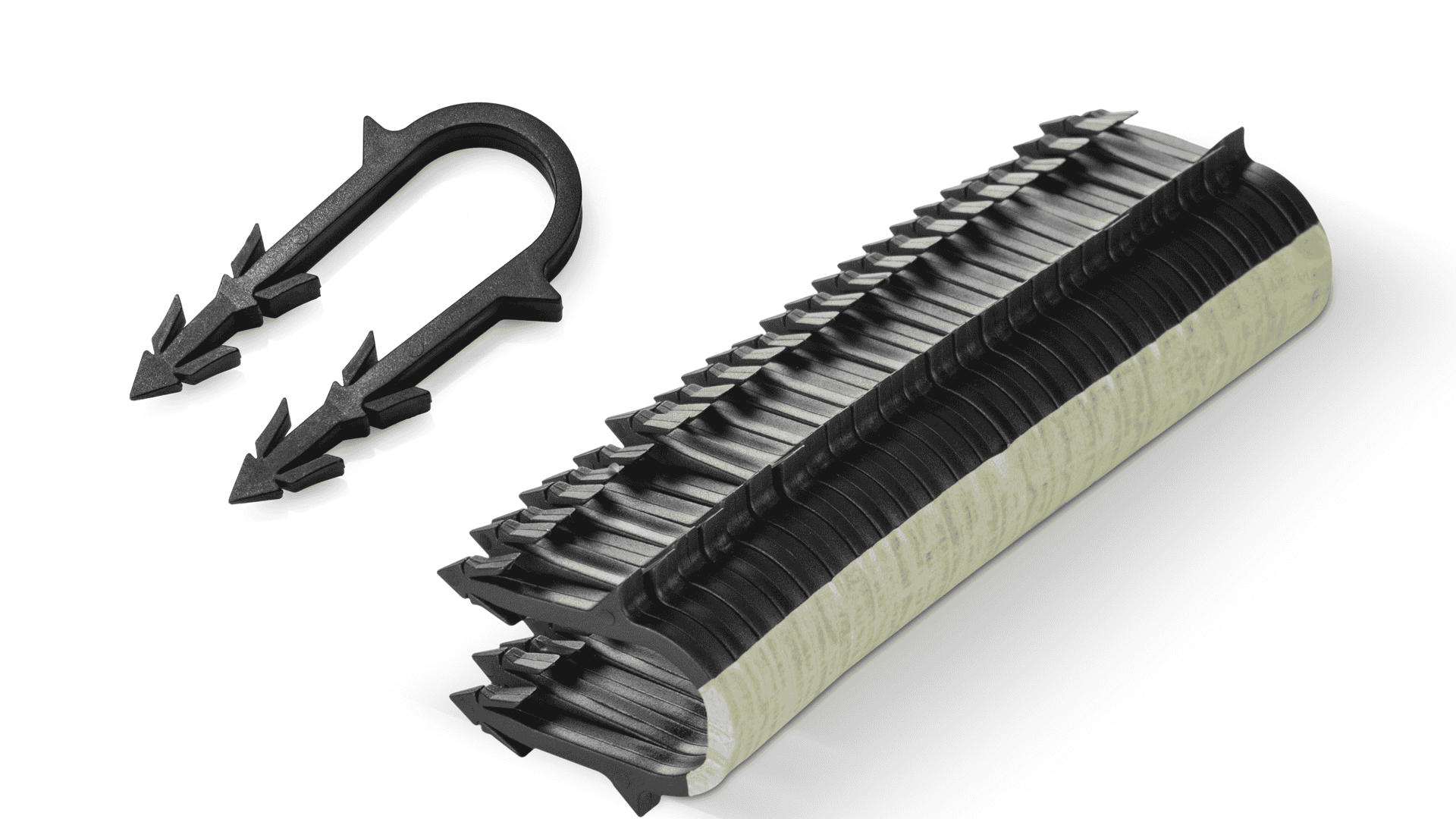

Clips for mounting pipes

Special plastic clips are used for effective fastening of heating pipes to the insulation.

The wide range of these elements is a nod to the contractors making floor installations.

The clips available in bulk are recommended for the manual mounting of pipes to insulation.

Considering the cumbersome and time-consuming nature of such a process, clips in so-called packs, designed for installation with a tacker, are much more popular.

Depending on the thickness of the thermal insulation, the range includes short, standard and long clips. This enables the pipe to be securely fastened to the foamed polystyrene board.

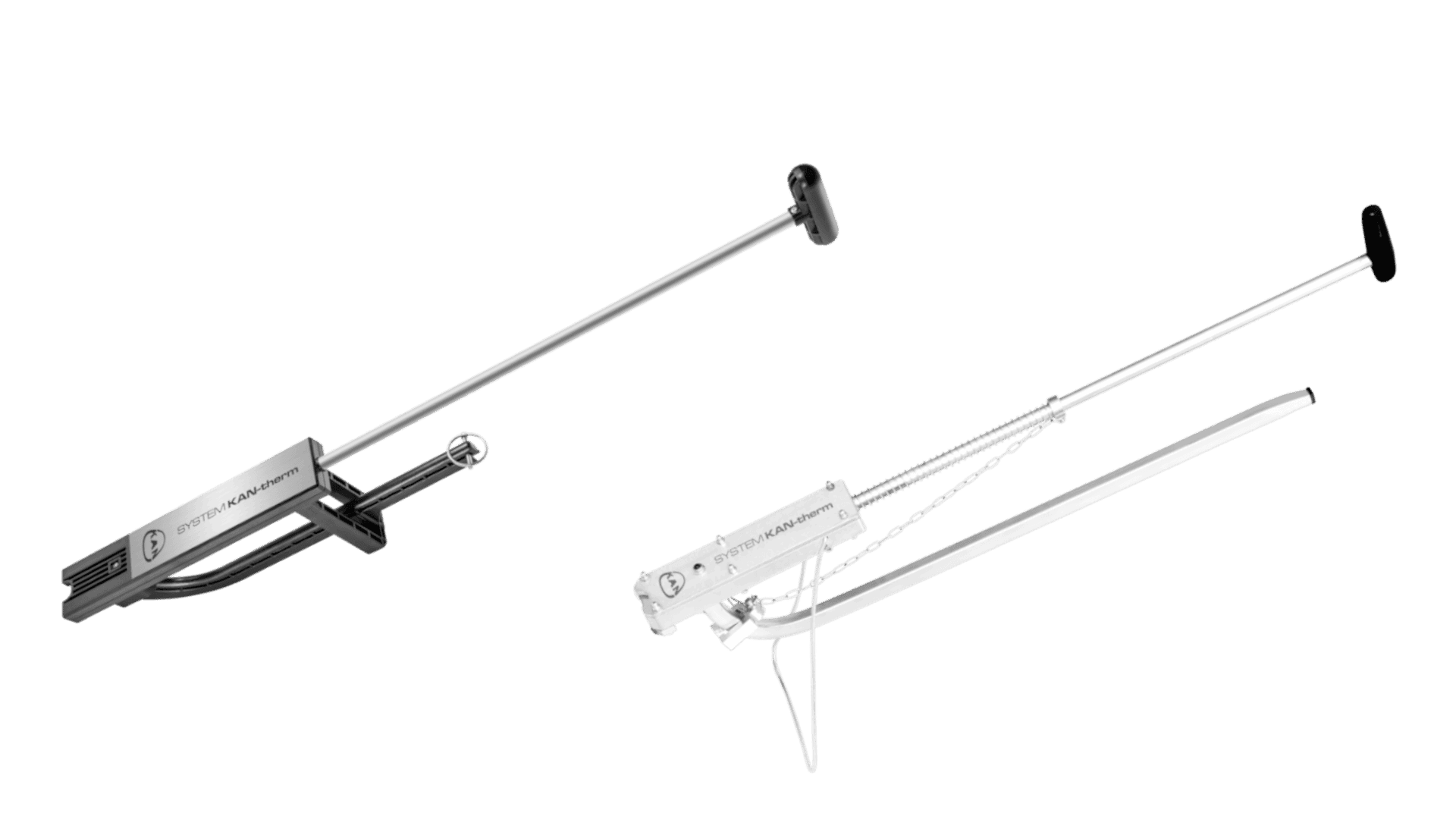

Tacker to drive clips

This is a mechanical device for fastening pipes to thermal insulation using plastic clips.

By using the clips in the packs, working with the tacker becomes more convenient and quicker. With the tacker, the fastening of heating loops can even be done alone.

Different constructions of the tacker (plastic and metal) make it possible to adjust it to the type of clips used.

Supplementary elements

The complete underfloor heating installation requires the use of additional materials to ensure safe operation:

Edge tape dividing the heating panel from the structural elements of the building.
Dilatation tape to divide large surfaces into smaller.
BETOKAN and BETOKAN Plus plasticizers increasing the resistance of the heating panel to excessive cracking during thermal operation.
